STEAP4 with copper reductase activity suppresses tumorigenesis by regulating the cell cycle in hepatocellular carcinoma cells

Cell Division volume 19, Article number: 35 (2024) Cite this article

Abstract

Background

Abnormal expression of six-transmembrane epithelial antigen of prostate 4 (STEAP4) has been implicated in the carcinogenesis of hepatocellular carcinoma (HCC). However, the biological role and regulatory mechanisms of STEAP4 in HCC remain unclear.

Methods and Results

Here, we analyzed STEAP4 expression levels and differentially expressed genes (DEGs) between STEAP4 high- and low-expression groups using multiple databases. Proliferation assays, 5-ethynyl-2’-deoxyuridine (EdU) assays, propidium iodide (PI) flow cytometry, and colony formation assays were conducted to assess the effects of STEAP4 on HCC cell proliferation, cell cycle progression, and clonogenic capacity. STEAP4 was downregulated in HCC tumor tissues, with lower expression associated with poorer overall survival (OS) and disease-free survival (DFS) in patients. Functional network analysis suggested that STEAP4 regulates cell cycle signaling, with tumor sections showing a negative correlation between STEAP4 and cell cycle proteins. Overexpression of STEAP4, combined with non-cytotoxic copper exposure in the HepG2 cell line, reduced proliferation and clonogenicity, induced cell cycle arrest, and downregulated the mRNA and protein levels of cell cycle-regulating genes. A predictive model based on STEAP4 and cell cycle gene demonstrated prognostic value in HCC patients.

Conclusions

Our results lay a foundation for further study of the cell cycle regulatory role of STEAP4 with Cu2+ reductase activity in HCC, indicating that STEAP4 may be a promising therapeutic target for HCC.

Introduction

Hepatocellular carcinoma (HCC) is the most prevalent form of liver cancer, characterized by its aggressive nature and poor prognosis. Despite advances in diagnostics and treatment, HCC remains one of the leading causes of cancer-related mortality worldwide [1, 2]. The five-year survival rate for advanced HCC is low, mainly due to high recurrence and metastasis rates [3]. The lack of tumor type- or stage-specific molecular markers presents a critical barrier to improving HCC understanding and treatment [4]. Thus, identifying novel biomarkers and therapeutic targets is urgently needed to enhance patient outcomes.

The six-transmembrane epithelial antigen of the prostate (STEAP) family has attracted significant interest in oncology for its multifaceted roles in tumorigenesis and cancer progression. Initially recognized for high expression in prostate cancer, emerging evidence suggests that STEAP proteins, particularly STEAP4, may also play regulatory roles in liver cancer, including HCC [5,6,7,8,9]. The STEAP4 (also known as STAMP2 and TIARP) is involved in copper reduction and transport [10]. Previous studies suggest that STEAP4 is broadly expressed in various tissues [10,11,12] and has associations with obesity, insulin resistance, inflammation, and cancer progression [13,14,15,16]. Notably, STEAP4 expression is dysregulated in multiple cancers, suggesting a role in tumorigenesis [15, 17,18,19]. Recent studies implicate STEAP4 as a potential prognostic marker in HCC, with Tang et al. demonstrating reduced STEAP4 mRNA levels in HCC tissues compared to non-tumorous tissues and linking lower expression to advanced tumor stage and poorer survival rates [20]. These findings suggest that STEAP4 could serve as a prognostic indicator in HCC, supporting risk stratification and treatment decision-making. Additionally, STEAP4 may influence cell proliferation and survival pathways, potentially hindering HCC progression. It has been shown to inhibit cisplatin resistance by suppressing the PI3K/AKT pathway, crucial in HCC growth and chemotherapy resistance [21]. However, the exact mechanisms of STEAP4 in HCC progression remain to be fully elucidated.

Dysregulated cell-cycle proteins are central to all cancer types and drive tumorigenesis [22]. Targeting cell-cycle kinases is a promising cancer therapeutic approach. The STEAP family has been implicated in cell-cycle regulation. Antibody blockade of STEAP4 was shown to inhibit pre-adipocyte proliferation via cell-cycle control [13], and STEAP1 is closely linked to carcinoma cell cycles [23]. Importantly, STEAP4 expression in HCC patients has been associated with response to immune checkpoint inhibitors [24], highlighting cell-cycle control as a likely regulatory mechanism for STEAP4 in cancer cells. Nonetheless, STEAP4’s role in HCC cell-cycle regulation remains poorly understood.

As a family, STEAP proteins share metalloreductase activity, underscoring their significance in cancer metal metabolism [12]. Recent findings indicate that STEAP2 promotes HCC progression by increasing intracellular copper levels [25], while copper (I) compounds have demonstrated efficacy against human tumors by inducing cell-cycle arrest [26]. In addition, Copper (II)-modified molecules similarly induce oxidative stress and cell-cycle inhibition in tumor cells [27, 28]. However, non-cytotoxic copper overload can interact with mitochondrial metabolism to enhance cell proliferation [29], mainly through driving remodeling of metabolic state and bioenergetic benefits to promote cancer growth [30], suggesting that copper's role in cell-cycle regulation depends on its cellular concentration and reduction state [31]. Although STEAP4 is known for its copper reduction and transport functions, its copper reductase activity and possible involvement in cell-cycle regulation remain largely unexplored.

In this study, we examined STEAP4 expression in HCC patients using public RNA-seq data, screened key genes in its functional network, and identified relationships between STEAP4 expression and cell-cycle-related genes. We further evaluated the effects of STEAP4 overexpression, alongside non-cytotoxic copper exposure, on HCC cell proliferation, clonogenicity, and cell-cycle gene regulation in- vitro. Our findings suggest that STEAP4, in conjunction with its copper reductase activity, may offer prognostic value in HCC tumorigenesis and could provide insights for future therapeutic targets.

Results

Decreased STEAP4 expression in hepatocellular carcinoma cohorts

STEAP4 mRNA expression was significantly downregulated in tumor tissues across multiple HCC cohorts (Fig. 1A, B). To confirm STEAP4 expression in HCC tissues, we conducted immunohistochemistry staining on twenty HCC and adjacent normal tissue samples. Representative IHC images and quantitative analysis results in our HCC cohort are shown in Fig. 1C, demonstrating significantly lower STEAP4 expression in HCC tissues compared to adjacent normal tissues (p < 0.0001). As presented in Table 1, STEAP4 expression was not significantly associated with other clinicopathological factors, including lymph node metastasis (p = 0.212) and distant metastasis (p = 0.079). However, STEAP4 expression was significantly correlated with tumor T stage (p = 0.024) and race (p = 0.012) in LIHC patients, suggesting a potential biological role for STEAP4 in HCC tumor stage progression.

Fig. 1
figure 1

STEAP4 expression in HCC cohorts. A Box plots showing STEAP4 mRNA expression in liver hepatocellular carcinoma (LIHC) tumor cohort versus TCGA normal and GTEx data, analyzed by t-test in the GEPIA database (*, p < 0.01). B Scatter plots of STEAP4 mRNA expression in tumor and non-tumor samples from HCC patients, as presented in the Oncomine database across multiple datasets, including Chen Liver, Roessler Liver, Roessler Liver 2, Wurmbach Liver, and Mas Liver (*, p < 0.05; ****, p < 0.0001). C Representative IHC images (10X and 40X) illustrating STEAP4 protein expression in HCC and adjacent non-tumor tissue. Scale bar = 50 µm for 40X images. Overall statistical analysis of STEAP4 protein expression in HCC patient samples based on IHC staining (****, p < 0.0001)

Full size image
Table 1 Association of STEAP4 expression with clinicopathological characteristics in TCGA-liver hepatocellular carcinoma (LIHC) patients
Full size table

STEAP4 expression is associated with survival in TCGA-LIHC cohort

Patients with higher STEAP4 expression demonstrated significantly improved overall survival (OS) (log-rank test, p = 0.024) and disease-free survival (DFS) (log-rank test, p = 0.02), compared to those with lower expression levels in the TCGA-LIHC cohort (Fig. 2A, B). Consistent findings were observed using Kaplan–Meier plotter database with TCGA-LIHC data (Fig. 2C). Multivariate Cox survival analysis further indicated that STEAP4 expression is an independent predictor of poor prognosis in LIHC patients (p < 0.05; Fig. 2D). These results suggest that STEAP4 may serve as a valuable and independent prognostic marker in HCC.

Fig. 2
figure 2

Prognostic evaluation of STEAP4 in HCC patients. A, B Analysis of overall survival (OS) and disease-free survival (DFS) based on high and low STEAP4 expression in LIHC patients using the GEPIA database. C Kaplan–Meier analysis of OS for high and low STEAP4 expression in TCGA-LIHC samples. D Multivariate Cox proportional hazards analysis of OS, visualized through a forest plot

Full size image

Genome-wide expression profiles and co-expression networks of STEAP4 reveal correlations with major cell cycle-regulating genes in TCGA-LIHC cohort

We identified differentially expressed genes (DEGs) by comparing high- and low-expression groups of the STEAP4 gene within the TCGA-LIHC cohort. In total, 142 upregulated and 250 downregulated genes were significantly associated with STEAP4 expression (FDR-adjusted P < 0.05, FDR < 0.05, and |FC|≥ 2, Fig. 3A). As shown in Fig. 3B, the downregulated gene set was significantly enriched for the cell cycle pathway in KEGG analysis. We further examined correlations between STEAP4 and key cell cycle-related genes (Fig. 3C and Table 2). Results indicated that STEAP4 expression was significantly correlated with 14 cell cycle-related genes, with the top five negatively regulated genes being CDC20, CDC25C, CCNB1, CCNB2, and PLK1 (all p-values < 0.05, correlation coefficients -0.45, -0.41, -0.41, -0.40, and -0.38, respectively). Notably, IHC staining of our HCC samples revealed significantly higher expression of PLK1, CDC20, CDC25C, and CDK1 in HCC tissues compared to adjacent normal tissues, consistent with the mRNA expression profiles observed in the TCGA-LIHC dataset (Fig. 4).

Fig. 3
figure 3

DEGs of key cell cycle-related genes in high and low STEAP4 expression groups in LIHC cohort. A Volcano plots display differentially expressed genes (DEGs). B KEGG pathway enrichment analysis of DEGs, conducted using DAVID, is visualized in bubble plots, with the y-axis showing significantly enriched KEGG pathways and the x-axis showing various gene ratios. DEGs, differentially expressed genes; KEGG, Kyoto Encyclopedia of Genes and Genomes. C The top 5 negatively correlated cell cycle-related genes with STEAP4, analyzed using TIMER

Full size image
Table 2 The correlation between SEAP4 and key cell cycle-related genes in the LIHC-TCGA cohort
Full size table
Fig. 4
figure 4

Representative IHC images showing the expression of STEAP4, PLK1, CDC25C, CDC20, CCNB2, CCNB1, and CDK1 proteins in HCC and adjacent non-tumor tissues. Compared to peritumoral tissues, HCC tissues exhibit lower STEAP4 expression and higher levels of PLK1, CDC20, CDC25C, and CDK1 (n = 7). T: tumor; P: peritumoral tissue. Scale bar: 100 µm

Full size image

For further validation, STEAP4 co-expression genes were analyzed using the LinkedOmics database. Interestingly, differential expression analysis of the top 10 co-expressed genes revealed that 7 of these (CDT1, CDCA3, KIF2C, BIRC5, TROAP, AURKB, and MYBL2) were closely related to cell cycle regulation. Moreover, STEAP4 expression in HCC showed significant association with a network of kinases (ATR, CDK1, CDK2, ATM, PLK1, CHEK1, AURKB, and CHEK2) involved in cell cycle regulation, suggesting a potential role for STEAP4 in modulating the cell cycle in HCC.

Effect of STEAP4 copper reductase activity on HCC cell viability, clonogenicity, and proliferation

To investigate the role of STEAP4 expression in the cell cycle of HCC cell line, we first examined whether STEAP4 overexpression affects viability in the Hep G2 cell line, where baseline STEAP4 expression is low, as shown in the Human Protein Atlas from liver cancer cell lines (Fig. S1). Our western blot results indicated that successfully overexpress or downregulate STEAP4 protein in Hep G2 cells (Fig. S1). Unexpectedly, STEAP4 overexpression did not significantly alter cell viability (Fig. 5A). Given that STEAP4 functions in copper reductase activity involved in copper metabolism [32] and that regulating copper homeostasis can induce programmed cell death [33], we tested the combined effect of STEAP4 overexpression and copper treatment. Treatment with CuSO4 or CuCl2 at high concentrations (over 100 μM) increased cell death in Hep G2 cells (Fig. 5B). However, at low concentrations (25 or 50 μM), both copper compounds promoted cell proliferation (Fig. 5C). We therefore used 50 μM copper as a non-cytotoxic concentration for further analysis.

Fig. 5
figure 5

Efficacy of STEAP4 overexpression in Hep G2 Cells via copper reductase activity. A STEAP4 overexpression in Hep G2 cells shows no significant cytotoxicity. B, C Copper incubation induces a dose-dependent cytotoxic effect on Hep G2 cells, with 50 μM copper identified as a non-cytotoxic concentration. D Co-treatment with STEAP4 overexpression and 50 μM copper decreases cell viability in Hep G2 cells. E, F Co-treatment with STEAP4 overexpression and 50 μM copper reduces colony formation in Hep G2 cells. *p < 0.05, **p < 0.01, ***p < 0.001, ##p < 0.0001

Full size image

Interestingly, the combination of STEAP4 overexpression and 50 μM copper significantly reduced cell viability compared to copper treatment alone (Fig. 5D). Rescue experiments using STEAP4-targeting siRNA confirmed that STEAP4 is required to enhance cell death under low-copper conditions in Hep G2 cells (Fig. 5D). These findings were corroborated by colony formation assays, which demonstrated that STEAP4 overexpression in combination with 50 μM copper reduced colony formation than copper alone (Fig. 5E, F).

Importantly, results demonstrate that 50 μM copper significantly increases EdU + Hep G2 cells (green) alone (Fig. 6A, B). Conversely, co-treatment with 50 μM copper and STEAP4 overexpression significantly decreases EdU + cells (Fig. 6A, B), a synergistic effect abolished by STEAP4 knockdown via siRNA. Collectively, STEAP4 with copper reductase activity (at the non-cytotoxic 50 μM concentration) reduces cell viability, clonogenicity, and proliferation in Hep G2 cells.

Fig. 6
figure 6

Inhibition of Hep G2 cell proliferation by STEAP4 with copper reductase activity. A, B The 5-Ethynyl-2′-deoxyuridine (EdU) staining reveals reduced cell proliferation rates following STEAP4 overexpression with 50 μM copper co-treatment. C GSEA of the LICH-TCGA cohort highlights STEAP4 co-expressed genes linked to cell cycle regulation. * p < 0.05

Full size image

Effects of STEAP4 and copper reductase activity on cell cycle regulation and cell cycle-related gene expression in HCC

To examine the synergistic effect of STEAP4 with copper reductase activity on cell cycle regulation (Figs. 3B, 6C), we conducted PI staining to assess whether co-treatment with 50 μM copper and STEAP4 overexpression would induce cell cycle arrest in Hep G2 cells. Flow cytometry results indicate that STEAP4 overexpression significantly increases the percentage of Hep G2 cells in sub-G1 and G2/M phases (Fig. 7A–C) when co-treated with 50 μM copper, an effect eliminated by STEAP4 knockdown with siRNA, suggesting G2/M arrest is linked to STEAP4 with copper reductase activity.

Fig. 7
figure 7

Effects of STEAP4 overexpression and 50 μM copper on cell cycle distribution in Hep G2 cells. A–C Cell cycle distribution analysis shows that co-treatment with STEAP4 overexpression and 50 μM copper increases the percentage of Hep G2 cells in sub-G1 and G2/M phases. The synergistic effect is eliminated by STEAP4 knockdown via siRNA, indicating G2/M cell cycle arrest associated with STEAP4 copper reductase activity. * p < 0.05

Full size image

Consistently, co-treatment with STEAP4 overexpression and 50 μM copper significantly downregulates PLK1, CDK, CDC20, CDC25C, and CCNB2 mRNA expression in Hep G2 cells (P < 0.05, respectively, Fig. 8A). Notably, this co-treatment also significantly reduced the protein expression levels of PLK1, CDK, CDC20, CDC25C, and CCNB2 in Hep G2 cells (Fig. 8B). Thus, STEAP4 with copper reductase activity (50 μM as a non-cytotoxic concentration) may induce G2/M phase arrest in HCC cells.

Fig. 8
figure 8

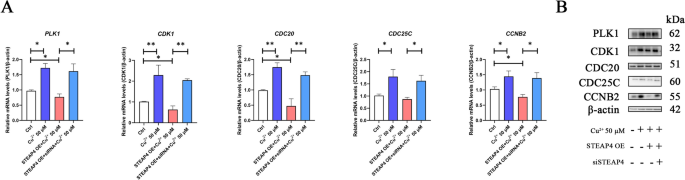

STEAP4 and 50 μM Copper co-treatment downregulates indicated cell cycle genes in Hep G2 cells. A STEAP4 with copper reductase activity reduces PLK1, CDK1, CDC20, CDC25C, and CCNB2 mRNA expression in Hep G2 cells. This synergistic effect is abolished by STEAP4 knockdown via siRNA. * p < 0.05, ** p < 0.01. B STEAP4 with copper reductase activity reduces PLK1, CDK1, CDC20, CDC25C, and CCNB2 protein expression in Hep G2 cells as indicated by representative western blot results

Full size image

Development and validation of a prognostic model based on STEAP4/cell cycle-related genes in HCC

For clinical applicability, we combined seven co-expressed cell cycle genes (CDT1, CDCA3, KIF2C, BIRC5, TROAP, AURKB, MYBL2), eight co-expressed cell cycle-related kinases (ATR, CDK1, CDK2, ATM, PLK1, CHEK1, AURKB, CHEK2), and STEAP4 to develop a prognostic model for HCC. Using multivariate Cox proportional hazards regression and stepwise analysis, we created an optimal model: risk score = CDCA3* 0.5289133 + STEAP4* − 3.7328420. Patients were classified into high- and low-risk groups based on median risk score. The high-risk group had significantly shorter OS (P < 0.0001, Fig. 9A), with AUCs of 0.783, 0.722, and 0.754 for 1-, 3-, and 5-year OS, respectively (Fig. 9C). The risk score was validated as an independent prognostic factor through multivariate analysis (Fig. 9D). Subgroup analysis further validated the signature's prognostic value across stages, sexes, and age groups (Fig. 9E). The signature model ability stratifying patients was achieved in patients with early-stage, advanced stage, male, female, < 60-year, < 60-year, and >  = 60-year, respectively.

Fig. 9
figure 9

Prognostic model construction and subgroup analysis. A Kaplan–Meier curves and log-rank test show OS differences in high- vs. low-risk groups (TCGA-LIHC). B Scatter plots showing gene distribution in the signature. C ROC curves evaluating the signature's predictive performance in TCGA-LIHC. D Identification of signature as an independent prognostic factor. E Subgroup analysis across different clinical factors: early-stage, advanced stage, male, female, < 60-year and ≥60 years, respectively

Full size image

The predictive capability of this signature was validated in the ICGC dataset. Patients were stratified into high- and low-risk groups using the same method. Survival analysis showed lower OS in high-risk patients (p = 0.0088) (Fig. 10A). Scatter plots and heat maps depict risk score distribution, patient survival status, and gene expression patterns (Fig. 10B). AUCs were 0.560, 0.684, and 0.951 for 1-, 3-, and 5-year OS, respectively (Fig. 10C). Further validation confirmed the signature as an independent prognostic factor (Fig. 10D). For clinical utility, we combined independent factors from the TCGA cohort to create a nomogram (Fig. 10E). Calibration plots of 1-, 3-, and 5-year survival rates are presented in Fig. 10F.

Fig. 10
figure 10

Signature validation in ICGC-HCC dataset and nomogram development. A Kaplan–Meier curves and log-rank test of OS in high- and low-risk groups (ICGC-HCC). B Scatter plots of gene expression in the signature. C ROC curves assessing prediction performance (ICGC-HCC). D Identification of the signature as an independent prognostic factor. E Nomogram integrating TNM stage and signature. F Calibration plots for survival rates at 1, 3, and 5 years

Full size image

Discussion

Hepatocellular carcinoma (HCC) constitutes approximately 90% of primary liver tumors and ranks as the second leading cause of cancer-related mortality globally [1] with an overall poor survival rate [34]. Despite its prevalence, the molecular pathogenesis of HCC remains incompletely understood [2]. In this study, we demonstrate that STEAP4 expression is significantly reduced in the TCGA-LICH cohort, and low STEAP4 expression is associated with worse prognosis and overall survival in HCC patients. Functional network analysis indicated that STEAP4 is involved in cell cycle regulation. Overexpression of STEAP4, combined with exposure to a non-cytotoxic concentration of copper in HepG2 cells, reduced proliferation and clonogenicity, induced cell cycle arrest, and downregulated mRNA expression and protein expression of indicated cell cycle-related genes. The prognostic relevance of STEAP4's copper reductase activity in HCC suppression, along with its associations with cell cycle control kinases, may provide promising insights for future therapeutic targets (Fig. 11).

Fig. 11
figure 11

Schematic diagram of proposed mechanism of STEAP4-mediated copper reductase activity in HCC tumorigenesis suppression via cell cycle regulation. This schematic illustrates STEAP4's functional impact on HCC cells in vitro. STEAP4-mediated copper reduction leads to downregulation of key cell cycle genes, inhibiting G2/M progression in HCC cells. Further investigation into the underlying mechanisms of STEAP4-mediated regulation of cell cycle genes is warranted. (Figure created with Figdraw)

Full size image

The STEAP gene family, initially identified in 1999 by Hubert et al. in a prostate cancer xenograft model [9], includes STEAP4, which is expressed in various tissues, such as lung, pancreas, heart, liver, and skeletal muscle [5,6,7,8]. Studies have shown that STEAP4 downregulation contributes to inflammation [35, 36], and is implicated in prostate [8, 37], colon [15, 38], breast [17, 39] and bladder cancer progression [19]. However, the role of STEAP4 in HCC remains largely unexplored [2, 18]. To investigate, we used bioinformatics to analyze STEAP4’s function and regulatory network in HCC, revealing significant downregulation in HCC cohorts and a correlation with poorer prognosis and survival in the TCGA-LIHC dataset, suggesting a tumor-suppressive function. Subgroup analysis showed that STEAP4 levels correlate with T stage, making it a potential diagnostic and prognostic marker. High STEAP4 expression was associated with an increased proportion of T1 stage cases. Multivariate Cox analysis confirmed STEAP4 as an independent predictor of unfavorable prognosis in LIHC patients (p < 0.05).

Through the LinkedOmics database, we identified 9,839 co-expressed genes, with KEGG pathway analysis showing enrichment in pathways like Complement and coagulation cascades, Chemical carcinogenesis, Fatty acid degradation, Spliceosome, Ribosome, and Cell cycle. STEAP4 was notably correlated with 14 cell cycle genes, including CDC20, CDC25C, CCNB1, CCNB2, and PLK1, as well as kinases like ATR, CDK1, CDK2, ATM, PLK1, CHEK1, AURKB, and CHEK2, which regulate DNA damage, replication, mitosis, and cell cycle control. Elevated expression of cancer-related kinases (AURKB, CDK1, CHEK1, and PLK1) correlated with poor HCC prognosis. PLK1, which controls the G2/M phase, was highly expressed in multiple cancers [40], with aberrant PLK1-related pathway activation in HCC [41, 42]. Longerich’s study showed that PLK1 plays oncogenic role in HCC [43]. Additionally, ATR-CHEK1 signaling, crucial for DNA damage response and genomic stability [44, 45], has been linked to HCC progression [46, 47]. AURKA overexpression promotes HCC proliferation and metastasis, suggesting the need for further research on STEAP4’s interaction with these kinases. However, further research on the association mechanism between STEAP4 and these cell cycle control kinases is needed.

The study reveals that STEAP4 plays a crucial role in modulating copper homeostasis, which appears directly linked to its tumor-suppressive effects in HCC. STEAP4’s copper reductase activity facilitates intracellular copper reduction, a process that impacts key cell cycle regulators and cancer progression. By promoting copper reduction, STEAP4 appears to influence cell cycle checkpoints, particularly in the G2/M phase. STEAP4-mediated copper reduction has been shown to induce G2/M phase arrest, indicating a novel mechanism whereby STEAP4 hinders cell proliferation by modulating copper availability. Furthermore, our data suggests that STEAP4 works in synergy with copper at non-cytotoxic levels to inhibit HCC cell viability, colony formation, and proliferation. The combined effect of STEAP4 expression and controlled copper levels disrupts cellular processes critical for cancer progression. This interplay highlights STEAP4’s potential as a regulatory mediator between copper metabolism and cell cycle control in HCC. Notably, recent studies have shown that copper acts as a co-factor in multiple oncogenic pathways, yet its dysregulation is also linked to oxidative stress and apoptosis in tumor cells. Thus, STEAP4’s role in fine-tuning copper levels provides a unique checkpoint that may prevent cancerous cells from acquiring an uncontrolled growth advantage. This association not only deepens our understanding of copper’s role in oncogenesis but also opens potential avenues for targeting copper metabolism in HCC with altered STEAP4 expression.

Copper impacts cell cycle regulation, interacting with cell cycle proteins at multiple checkpoints. High copper levels influence cyclin-dependent kinase activity, impacting G1/S and G2/M transitions. In our study, STEAP4 overexpression combined with 50 μM copper reduced viability, clonogenicity, proliferation, and induced G2/M arrest in HepG2 cells. The synergy effect was abolished by STEAP4 knockdown, indicating that G2/M arrest is mediated by STEAP4's copper reductase activity. More importantly, STEAP4-mediated increases in colon cancer copper levels result in activation of the E3 ligase X-linked inhibitor of apoptosis (XIAP) [15], cooperation with CDK1–cyclin-B1 axis controlling mitotic cell death [48], indicating an important regulatory role of STEAP4 in the cell cycle of malignant tumors [49]. Co-expression of XIAP and Cyclin D1 correlates with HCC outcomes [50], underscoring the role of STEAP4 in malignant cell cycle regulation and copper homeostasis. However, further study is needed for understanding from modulating key cell cycle regulators to orchestrating copper homeostasis through STEAP4.

To advance risk assessment in HCC, we developed a gene expression signature associated with STEAP4 and co-regulated genes. The two-gene signature (STEAP4 and CDCA3, Figs. 9and10) was successfully constructed via TCGA cohort, and was validated in ICGC cohort, demonstrating robust prognostic power in subgroup analysis. To offer an easy-to-use clinical assay, we also combined this signature with TNM staging to construct a nomogram with high discriminatory accuracy, improving prognostic stratification for resectable HCC patients and aiding in adjuvant treatment selection.

This study has several limitations. First, we did not investigate the cell cycle regulatory function of STEAP4 using in vivo animal models. However, datasets from TCGA suggest a potentially significant role for STEAP4 in the HCC cohort. Second, the mechanism by which copper supports the cell cycle regulatory function of STEAP4 was not explored. Finally, while our results indicate G2/M phase arrest, the discrepancy between the downregulation of multiple cell cycle proteins and the exclusive observation of G2/M phase arrest warrants further investigation to uncover the underlying mechanisms.

Conclusion

Our study provides potential evidence that STEAP4 may play a role in regulating HCC tumorigenesis, underscoring its significance in cell cycle regulation. STEAP4-mediated cell cycle regulation appears to depend on non-cytotoxic copper as a synergistic factor in vitro, supported by its copper reductase activity. These findings may offer new development of therapeutic targets in HCC.

Material and methods

Differential expression analysis of STEAP4 mRNA and immunohistochemistry (IHC) in cancer samples

The GEPIA database (http://gepia.cancer-pku.cn) and Oncomine 4.5 (https://www.oncomine.org/) were utilized to determine STEAP4 gene expression levels in normal tissues and hepatocellular carcinoma (HCC) tumors. For subgroup analysis, publicly available liver hepatocellular carcinoma (LIHC) RNA-Seq data were downloaded from The Cancer Genome Atlas (TCGA) database (https://cancergenome.nih.gov/) using the GDC Data Transfer Tool. A total of 371 primary tumor samples were categorized into low (n = 185) and high (n = 186) STEAP4 expression groups based on the median STEAP4 mRNA level. Associations between STEAP4 mRNA expression and clinicopathological features were assessed using the chi-squared test.

All sample section staining procedures were approved by the Ethics Review Board of Third Affiliated Hospital of Sun Yat-sen University under ethics approval number II 2024–196. Immunohistochemical staining was performed as previously described [15]. Briefly, tissue antigens were retrieved using sodium citrate for 15 min, followed by blocking with 5% BSA for 30 min. The tissue section was then incubated overnight at 4 °C with an anti-STEAP4 antibody (A17767, 1:100, Abclonal, Germany), anti-CDC20 antibody (A15656, 1:100, Abclonal, Germany), anti-CDK1 antibody (A22347, 1:100, Abclonal, Germany), anti-Cyclin B2 antibody (DF9047, 1:100, Affinity Biosciences, USA), anti-PLK1 antibody (AF2685, 1:100, Affinity Biosciences, USA), and anti-CDC25C antibody (AF6258, 1:100, Affinity Biosciences, USA). On the second day, an HRP-conjugated secondary antibody was applied for 120 min, followed by nuclear staining with hematoxylin. Digital images of the stained sections were captured using a Leica DM300 microscope (Germany). The subgroup analysis was performed on frozen primary and recurrent HCC tissue samples, categorizing them based on STEAP4 expression into high and low groups. Staining intensity was classified as 0 for negative, 1 for light yellow, 2 for light brown, and 3 for dark brown. Positive intensity and percentage were recorded, with scores of 0–1 deemed negative and scores of 2–3 deemed positive.

Association analysis between STEAP4 expression and prognosis

Survival curves, including overall survival (OS) and recurrence-free survival (RFS), were generated through the GEPIA database using the log-rank and Mantel-Cox tests. Survival analysis was conducted with the survival and survminer packages in R version 4.0.5, and independent prognostic factors were identified via multivariate Cox regression.

LinkedOmics database and genome-wide STEAP4 co-expression analysis

STEAP4 co-expression was analyzed in the LinkedOmics database (http://www.linkedomics.org/login.php) using Pearson’s correlation coefficient and presented in volcano plots, heat maps, and scatter plots. LinkedOmics’ function module was employed to examine Gene Ontology biological processes (GO_BP), KEGG pathways, and kinase-target enrichment through gene set enrichment analysis (GSEA). Differentially expressed genes among LIHC patients were further verified with the TIME database for STEAP4 correlation.

Cell Culture and Copper Treatment Conditions

Hep G2 cells (American Type Culture Collection, ATCC, Manassas, MD, USA) were cultured in RPMI 1640 medium with 10% FBS, 1% penicillin, and streptomycin at 37 °C with 5% CO₂. CuSO₄ and CuCl₂ (Cayman Chemical) were dissolved in ddH₂O and adjusted to the required concentration. Cells were treated with copper for 48 h post-STEAP4 overexpression or knockdown unless otherwise specified.

STEAP4 overexpression and knockdown via transient transfection

Approximately 1 × 105 cells/well were seeded in 6-well plates at 50–70% confluence. STEAP4 overexpression or knockdown was achieved with Lipofectamine® 3000 Reagent following the manufacturer’s protocol. Transfection involved pCMV6-Entry-STEAP4 (NM_024636) Human ORF Clone plasmid (500 ng, RC216917, Origene) for overexpression or 10 nmol of STAMP2 siRNA (Santa Cruz, Germany) for knockdown. Empty vector or control siRNA served as MOCK or knockdown control. STEAP4 protein expression was used to confirm transfection efficiency.

Cell viability assay

Cell viability was assessed by crystal violet staining as described previously [31]. Approximately 1 × 104 cells/well were seeded in 12-well plates, treated with copper (with or without STEAP4 overexpression) for 48 h, washed with PBS, and stained with 0.1% crystal violet for 30 min. Absorbance was measured at 595 nm using a microplate reader (Tecan, Germany). Cell morphology post-treatment was examined using phase-contrast microscopy (Carl Zeiss, Germany).

Colony formation assay

The colony formation assay was conducted as previously described. Briefly, 200 single cells were seeded per well in 6-well plates and cultured for seven days. Colonies were stained with 0.1% crystal violet, and morphology was observed using phase-contrast microscopy (Carl Zeiss, Germany).

The 5-ethynyl-2′-deoxyuridine (EdU) staining for DNA synthesis detection

To assess DNA synthesis and cell cycle S-phase, Hep G2 cells were stained using the Click-iT™ EdU Cell Proliferation Kit (Invitrogen, Germany) following the manufacturer’s instructions.

Propidium iodide (PI) staining for cell cycle analysis by flow cytometry

Forty-eight hours post-treatment with copper, Hep G2 cells underwent PI/RNase A staining (Invitrogen, Germany) for cell cycle analysis by flow cytometry (BD Accuri C6, Beckman Coulter, Germany), analyzing phases sub-G0/G1, G0/G1, S, and G2/M in over 25,000 cells.

Real-time quantitative PCR (qRT-PCR)

Total RNA was extracted with TRIzol reagent (Invitrogen), and qRT-PCR was performed using SYBR green qPCR master mix (TAKARA, Japan) following the manufacturer’s protocol. Primers are listed in Table 3, with β-actin as an internal reference for mRNA normalization. Determine the relative mRNA expression levels of target genes was using the 2−ΔΔCt method.

Table 3 The qRT-PCR primers used in this study (Homo sapiens)
Full size table

Western blotting

Cells were harvested and lysed in RIPA buffer, and protein concentrations were quantified using a BCA assay (Invitrogen, Germany). Following SDS-PAGE separation, protein samples were blocked in 5% skim milk and incubated overnight at 4 °C with primary antibodies: anti-STEAP4 antibody (11944-1-AP, 1:2000, proteintech, Germany), anti-PLK1 antibody (10305-1-AP, 1:2000, proteintech, Germany), anti-CDC20 antibody (10252-1-AP, 1:2000, proteintech, Germany), anti-Cyclin B2 antibody (21644-1-AP, 1:2000, proteintech, Germany), anti-CDC25C antibody (16485-1-AP, 1:2000, proteintech, Germany) and anti-CDK1/CDK2 antibody (sc-53219, 1:2000, Santa Cruz, Germany). Samples were then washed five times with TBST and incubated with appropriate secondary antibodies for 2 h at room temperature. Protein bands were visualized with Immobilon Western Chemiluminescent HRP Substrate (Millipore, WBKLS0500) for 1 min, and band densities were normalized to β-actin.

Establishment and validation of the prognostic model

To construct a prognostic model, we integrated co-expression genes and regulators of STEAP4 and applied stepwise multivariate Cox regression analysis based on the Akaike Information Criterion (AIC) to minimize overfitting and select candidate genes. Each LIHC patient’s risk score was calculated using the formula: risk score = gene a * coefficient a + gene b * coefficient b + gene c * coefficient c + … + gene n * coefficient n. Patients were then stratified into high- and low-risk groups based on the median risk score. Kaplan–Meier survival curves compared survival between these groups, and the log-rank test assessed statistical significance (p < 0.05). Model performance was evaluated and validated in both the TCGA-LIHC and ICGC-LIHC cohorts. The model visualization was facilitated through a nomogram, and calibration plots assessed prediction accuracy.

Statistical analysis

Statistical analysis was conducted using SPSS 25.0 and R version 4.0.5. Data are presented as mean ± SD. Differential expression of STEAP4 mRNA between HCC and adjacent normal tissues from the TCGA databases was analyzed via independent and paired t-tests. IHC staining scores were analyzed via Wilcoxon Signed-Rank Test. Associations between STEAP4 and clinical variables were examined using Pearson’s chi-squared test. Multivariate analyses were performed using the Cox proportional hazards model. Statistical significance was set at P < 0.05.

Data availability

The data generated or analyzed in this study are available within the article and its supplementary materials, and available from the corresponding author upon request.
